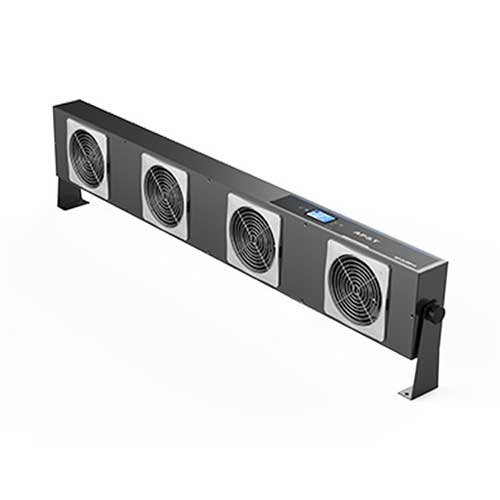

AP-DJ2814 ap&t industrial overhead anti static esd air ionizer

Video
1.PRINCIPLES:
2.FEATURES:
3.SPECIFICATION:
4.WORKING MODE:
5.ELECTROSTATIC ELIMINATION EFFECT:
6.PRODUCT SIZE:
1.PRINCIPLES:

AP-DJ2814 intelligent control / networking type screen display ion fan using DC de static technology, 4 mouth fan, wide range of de static, high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans to improve 1.45 times. With LCD display, with ion self-balancing function, self-balancing range ± 10V, and real-time display balance voltage.


DOWNLOAD FILE OF AP-DJ2814:

ap-dj2814-intelligent-control-networking-lcd-display-ionizing-air-blower-new.pdf
文件类型: .pdf ap-dj2814-intelligent-control-networking-lcd-display-ionizing-air-blower-new.pdf
2.FEATURES:

1.light touch switch button, easy to operate and use, fast.
2.Multiple air outlets, each outlet 8 needles, ion generation large amount.
3.with automatic brush needle function.
4.default every 8 hours automatically brush the needle once, eliminating the need to manually brush the needle cleaning and maintenance.
5.high air volume fan five-speed speed regulation, stable performance, the output air volume than ordinary fans increased by 1.45 times.
6.with LCD display, can display the device address, wind speed gear, cleaning cycle, ion balance voltage, temperature and humidity, high voltage alarm, each wind port balance voltage real-time display, exceed the set threshold alarm; high voltage failure for 0V, the output alarm prompt.
7.with ion self-balancing function, self-balancing range ± 10V, and real-time display of the balance voltage.
8.positive and negative ion output ratio adjustable, can be used to adjust the ion balance voltage.
9.fan failure and ion balance abnormalities, the display and LED red light alarm.
10.ion output characteristics, can be adjusted by remote control.
11.can achieve wired network communication, monitoring the working status of the fan.
12.through the CE test, with electromagnetic protection function, will not cause electromagnetic interference to other equipment; can also effectively avoid external electromagnetic interference affect the normal work of the fan.
13.magnetic mesh cover, mesh cover separation instant power off, the fan then in standby (STOP) state, easy to clean and maintain.

3.SPECIFICATION:

Model

AP-DJ2814

Input voltage

DC 24V(RJ45 interface)/ Three in one socket(220VAC 50/60Hz)

Output voltage

DC±4KV  ±6KV

Power

42.5W

Ion emission

Pulse DC

Emitter electrode

Tungsten alloy

Discharge range

750*1050mm(L*W)

Air volume

≤ 135CFM*4

Noise

Single air outlet≤ 58dBA(1000mm away from the air outlet)

Ozone thickness

≤ 0.05ppm(150mm away from the air outlet)

Ion balance

≤ |±15V|

Discharge speed

 2.5S(450mm away from the air outlet)







Status indicator

Power on/clean operation—blue light flashes;

Normal work—green light (always under monitoring status);

Fan fault alarm—red light always on;

Balance voltage exceed alarm-red light flashes;

High voltage fault alarm-red light flashes;

Infrared debugging/cleaning prompt-blue light flashing

Communication method

RS485



Signal output

RS485(115200bps,8,1,n,n) 20ms

Collector open circuit:< 50V,100mA

Working temperature

0 -50

Working humidity

< 70%RH

Dimensions(L*W*H)

1011*154*70mm(Ionizing Air Blower body size)

Shell material

Aluminum powder spraying

Installation accessories

1 pair of L-shaped iron powder spraying mounting brackets, 1 pair of

bakelite screw handles(M5×8)



Power adapter

INPUT:AC100—240V 50/60Hz;

(This is preferred for simultaneous power supply)

OUTPUT:DC24V 2A(dual RJ45 interface)

Net weight(Including power cord and bracket)

4.85KG

Warranty

1Year

Certification

CE

4.WORKING MODE:

The pulsed DC method alternately applies "+" and "-" high voltage to the positive and negative electrode pins to generate two polar ions. Compared with the industrial frequency AC method, the ion generation utilization rate is higher, whether for close or long distance, can play its electrostatic elimination ability. In addition, the discharge frequency can be adjusted to extend the elimination distance. Positive and negative ion output ratio can be adjusted for intelligent control.

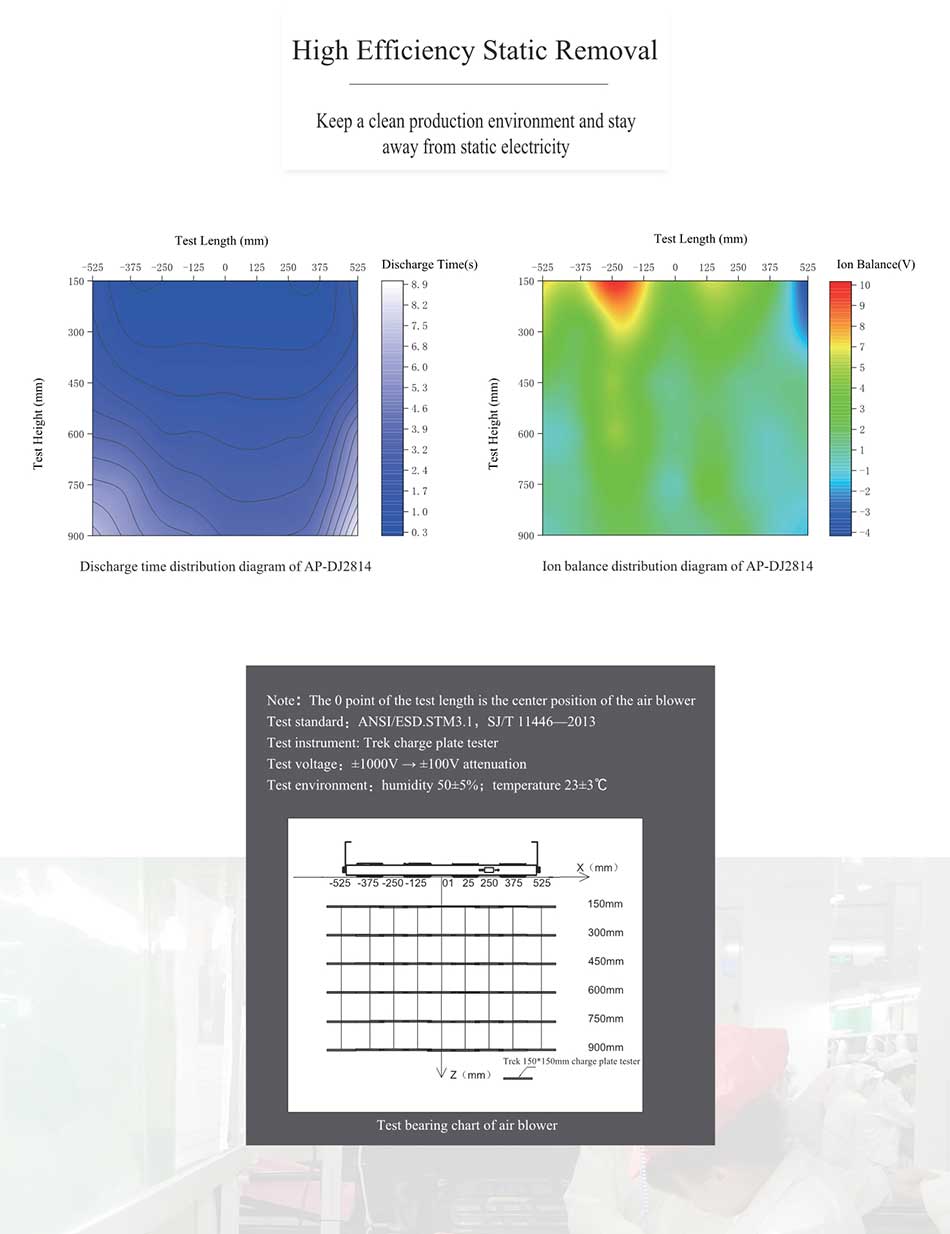

5.ELECTROSTATIC ELIMINATION EFFECT:

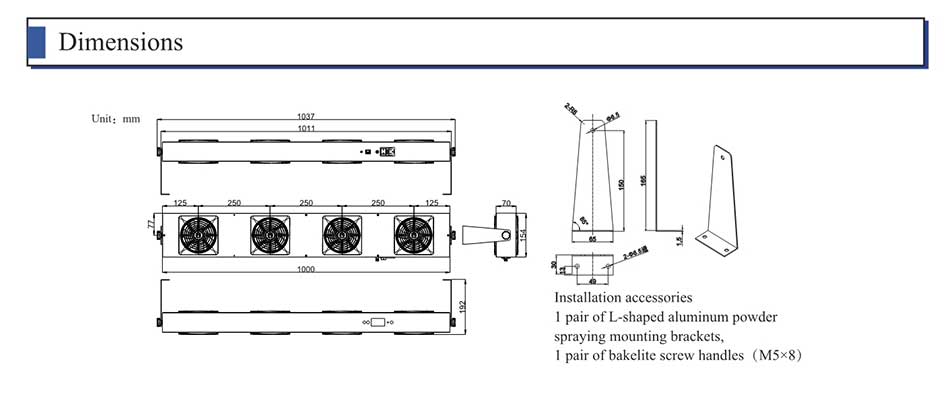

6.PRODUCT SIZE:
