AP-YV3601 Explosion-proof Electrostatic Voltage Sensor

Send an e-mail

Price

1.PRINCIPLES:

2.FEATURES:

3.SPECIFICATION:

4.PRODUCT CALIBRATION

5.PRODUCT SIZE:

1.PRINCIPLES:

The AP-YV3601 Explosion-proof Electrostatic Voltage Sensor is a testing instrument developed and produced by Anping Company to detect the surface electrostatic voltage of charged objects. It uses non-contact measurement

technology to minimize the impact of the testing instrument on the object's surface electrostatic field, ensuring measurement accuracy.

DOWNLOAD FILE OF AP-YV3601:

ap-yv3601-explosion-proof-electrostatic-voltage-sensor-26-6-23.pdf

ap-yv3601-explosion-proof-electrostatic-voltage-sensor-26-6-23.pdf

2.FEATURES:

1.Intrinsically Safe Explosion-proof Design (Ex ib IIB T6 Ga) for hazardous industrial environments.
2.Non-contact Electrostatic Voltage Measurement ensures accurate detection without disturbing the electrostatic field.
3.High-Precision Sensor Probe delivers stable and reliable measurement results.
4.304 Stainless Steel Housing provides excellent durability and corrosion resistance.
5.High-Definition LCD Display for clear, real-time readings.
6.Standard RS485 Communication enables seamless integration with PLCs and industrial automation systems.
7.Real-Time Static Voltage Monitoring for continuous online process control.
8.Wide Measuring Range up to ±20 kV with selectable sensing distances for various applications.
9.Adjustable Detection Distance to meet different installation and monitoring requirements.
10.LED Alarm Output & Open Collector Output for convenient system integration and alarm control.
11.Easy Installation and Operation with a compact design for online monitoring.
12.Ideal for Chemical, Oil & Gas, Film, Plastics, Powder Processing, and Other Static-Sensitive Applications.

3.SPECIFICATION:

NO.	Parameter
1	Working Voltage	No.1 Explosion-proof Battery 3.6V Power Supply or External DC5V Power Supply
2	Working Current	＜ 100mA
3	Sampling Time	About 1Hz
4	Vibration	＜ 1KHz
5	Noise	＜ 5dB
6	Signal Output	RS485(115200bps,8,1,n,n)（≧ 20ms）
		Open Collector（<50V/100mA）
7	Communication Distance		＜ 300m
8	Alarm Indicato	LED
9	Detection Plate Size	600mm*600mm
10	Start-up Waiting Time	5s

4.PRODUCT CALIBRATION

Calibration Environmental Conditions

The calibration environmental conditions and their requirements are as follows:

NO.	Content	Model and Parameter
1	High Voltage Power Supply	BERTAN_205B-20R
2	Flat Plate	Material: Stainless Steel, Thickness: 1mm, Length and Width：600mm*600mm
3	Environment	Dust-free room, Temperature: 20℃—23℃ , Humidity: 40%RH—45%RH, No measurable electric field, magnetic field, positive and negative ions around
4	Device	Both parties use the same standard device; with ground wire, ground wire resistance ＜ 1Ω (Equipment grounding)

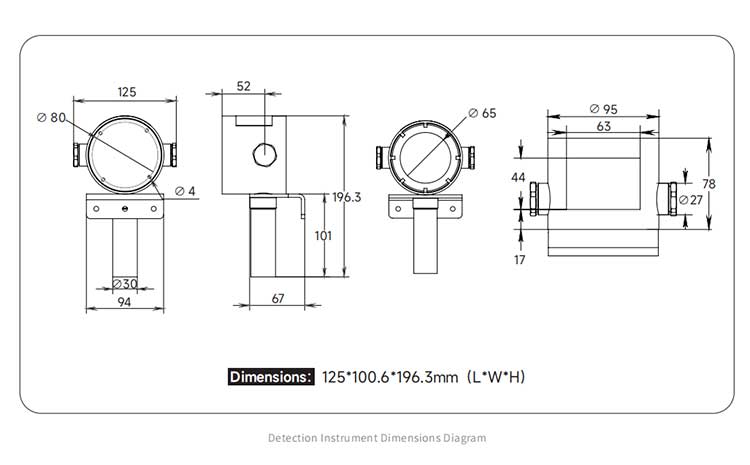

5.PRODUCT SIZE:
