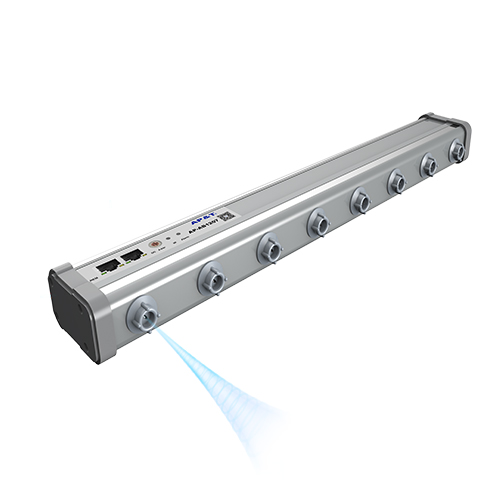

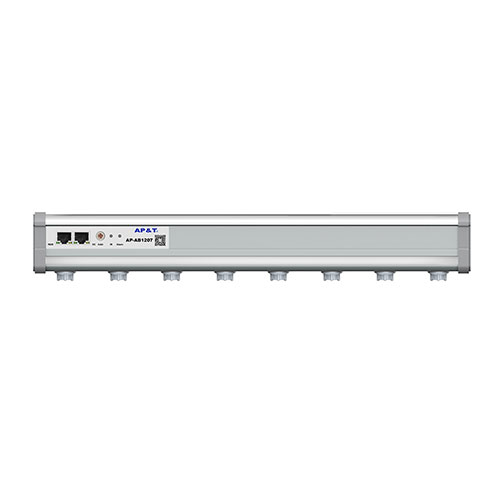

AP-AB1207 Status monitoring Static Eliminator AC Anti Static Bar

Model No.

AP-AB1207

Input Voltage

DC 24V

Input current

＜600mA

Power

10W

Working Voltage

±5000V

Working method

Pulse AC

Emitter electrode

SUS

Discharge structure

Resistance coupling

Output frequency

1,3,5,10,20,30,50Hz；(Factory setting:30Hz)

Duty Ratio

10%—90%

Working range

L*W*H：{385-410（Probe distance 25mm）；460-2960（Probe distance 50mm）}*300*1000mm

Working distance

30→100mm

Ion balance

≤|±30V|（AVE）

Discharge speed

≤1S (Test distance 100mm)

Warning indicate

Power input indicator，High Voltage indicator（Green is normal，Red is abnormal）

Status monitoring

 Series network monitoring / wireless monitoring

Airflow pressure

≤0.6MPa

air source connector With throttle valve

Φ8-G1/8 Black

Working temperature

0℃-50℃

Working humidity

＜70%

Dimension

L*W*H：{385-410（Probe distance25mm）；460-2960（Probe distance50mm）}*35*78.4mm

Bar body material

Flame retardant PVC、ABS、AL、SUS

Accessories

Flexible 180° install bracket

Power adapter

GRT-240200： DC24V 2A，Dual network port output，123*61*40.5mm（L*W*H）

Power adapter cable length

1.8m

Warranty

1 Year

Certificate

CE
