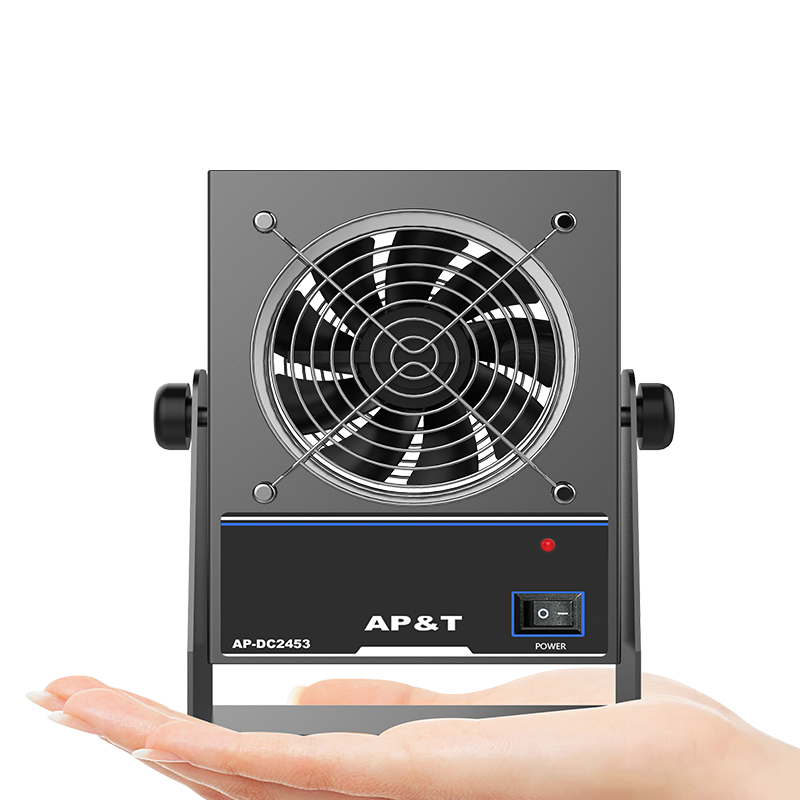

AP-DC2453 Desktop Mini Ionizing Air Blower

Industry Application
Product Feature
Specification
Working Ways(DC)
Positioning
Industry Application
Used in electronics, optoelectronics, semiconductors, plastics, film and printing industries
Product Feature
1、Compact appearance and easy to install
2、Able to be installed inside the devices for static removing
3、Low power and long service life
4、Stable, safe and reliable performance of the circuit
5、Detachable cover net both front and back, convenient for cleaning and maintenance
6、Equipped with special external power adapter



Specification

Model

AP-DC2453

Input Voltage

AC 220V /50Hz or 110V/60 Hz

Output Voltage

±DC4000V-DC7000V

Power

10W

Effective working range

450*300(L*W)

Discharge speed

≤2.5S (450mm testing center from the air outlet)

Ion balance

≤ |±10V |(450mm testing center from the air outlet)

Air volume

45CFM (Adjustable)

Noise

≤ 35db (150mm from the air outlet)

Ozone thickness

≤ 0.01 ppm (150mm from the air outlet)

Working temperature

0 ~ 50°C

Dimension

113*54*129mm(L*W*H)

Net weight

420g

Gross weight

480g (including packaging accessories)

Test Data

Test standard

ANST/ESD.STM3.1 ANST/RSD.SP3.3  SJ/T 11446-2013

Test instrument

Trek157

Test voltage

±1000V→100V

Test environment

Relative humidity:50±5%

Temperature:23±3℃

Working Ways(DC)



Elimination Effect



Testing instrument:3M-711 Static tester
Testing standard:SJ/T10694-2006、GB/T14437-97
Testing voltage:±1000 — ±100V Attenuation
Testing environment:Humidity30%—50% Temperature20±5℃

Outline Dimensional Drawing

Positioning
