AP-AB1601/1602 Explosion-Proof AC Voltage Static Eliminator

Product Feature
Industry Application
Specification
Working Ways (AC)
Caution When Use
Product Feature
(1)Bar shaped and cross over static eliminator
(2)Compact structure and elegant appearance
(3)Working under high voltage and micro current (μA level)
(4)Electric shock-proof function
(5)With a certain anti explosion function, can be used in flammable and explosive environments
(6)Stripe shaped notch on the back of the bar for user to fasten the bar
Industry Application
Can be used in printing, plastic, textile and other industries with flammable conditions.
Specification

Model

AP-AB1601

AP-AB1602

Explosion-proof mark

Ex s ⅡB T4 Gb

Ex s ⅡB T4 Gb

Explosion-proof certificate No.

GYB16.1549X

GYB16.1549X

Working voltage

Power frequencyAC4000V

Power frequency AC4000V

Power

20W

20W

Electrode HV

≤4000V

≤4000V

Electrode binding capacity

<3.5pF

<3.5pF

Discharge distance

30-150mm

100-600mm

Ion balance

≤|±100V|

≤|±100V|

Discharge speed

≤2.5S(Working distance 100mm)

≤2.5S(Working distance 300mm)

Working temperature

0°C - 50°C

0°C - 50°C

Working humidity

<70%

<70%

Bar body length

110—3000mm

110—3000mm

HV cable length

2.5m(customize available, maximum 8m)

2.5m(customize available, maximum 8m)

Power supply

AP-AY1603/2603

AP-AY1603/2603

Working Ways (AC)




Elimination Effect


(Ion bar length:210mm Working frequency:50Hz):
Test standard:ANSI/ESD.STM3.1,ANSI/ESD.SP3.3,SJ/T 11446—2013
Test instrument:Trek157 Static tester
Test voltage:±1000V → ±100VAttenuation
Test environment:Humidity 50±5%;Temperature 23±3℃

Special Conditions For Safe Use Of The Product
The explosion-proof certificate number suffix "X" shows that the product has special conditions for safe use, the specific contents are as follows:
(1)The product can not be used in places where conductive objects are likely to be attached to the electrodes (Can not be used if carbon, metal foil and other conductive objects may be attached to electrodes of ion bar).
(2)The distance between the electrode of ion bar and the object should be more than 20mm.
(3)The distance between the electrode of ion bar and the mechanical frame should be more than 10mm.
(4)The electrode of ion bar should be kept clean. Dry cleaning of electrode support is strictly prohibited.
(5)The power supply device does not have the explosion-proof structure and must be set in the non dangerous place.
(6)The maximum length of the high voltage cable is 8m.
(7)It is strictly prohibited to use when cover is open.
(8)Friction on products outer surface is strictly prohibited to prevent static ignition risk.
Caution When Use
(1)Requirement of environment:
Temperature: (0 ~ +50) ℃, Humidity: 35% ~ 75%, Altitude: lower than 1000m.
(2)The product grounding terminals should be reliably grounded.
(3)The "no charged open" principle should be obeyed when use and maintain at the field spot.
(4)The users are not allowed to replace the parts or components of the product.
(5)The electrical parameters of the equipment are as follows:

Electrode

Power supply

Voltage

(V)

Frequency

(Hz)

Needle binding content

(pF/group)

Primary voltage

(V)

Secondary voltage

(V)

Frequency

(Hz)

Capacity

(VA)

Insulation grade

4000

50

60

3.5

100

110

220

4000

50

60

25

E


(6)The installation, use and maintenance of the product shall comply with the product specification and the following relevant standards and specifications:
GB 3836.13 - 2013 explosive environment part 13: equipment repair, overhaul, repair and transformation
GB 3836.15 - 2000 electrical equipment for explosive gas atmospheres - Part 15: electrical installations in hazardous locations (except for coal mines)
GB 3836.16 - 2006 electrical equipment for explosive gas atmospheres - Part 16: Inspection and maintenance of electrical equipment (except for coal mines)
GB 50257 - 2014 explosion and fire hazardous environments of electrical equipment installations, Specification for construction and acceptance of electrical equipments
GB 3836.18 - 2010 explosive environments - Part 18: intrinsically safe systems
(7) Please read the instruction manual carefully before installing and using the equipment.

Outline dimensional drawing

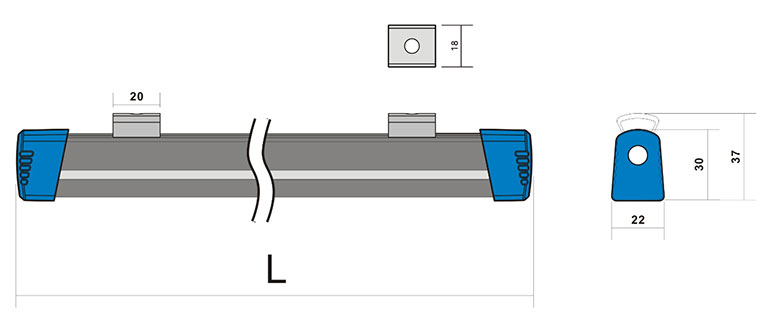

                                                                  Figure 1 AP-AB1601 Dimension


                                                                Figure 2 AP-AB1602 Dimension
